Glitch User
 Posts: 214 | DIY Light Cycle trail that lights up on Saturday, February, 19, 2011 4:49 PM
This is dead easy to make, you don't need any electronics experience to make it and it's very cheap:

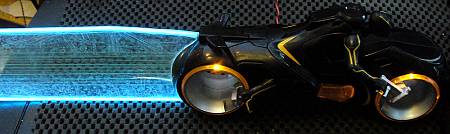

Click first pic for larger:
I know the trail & cycle colours don't match, this is the only stuff I got right now. I'll post details of how to make it later, I gotta go out and get some food.
|
Glitch User
 Posts: 214 | RE: DIY Light Cycle trail that lights up on Saturday, February, 19, 2011 6:55 PM

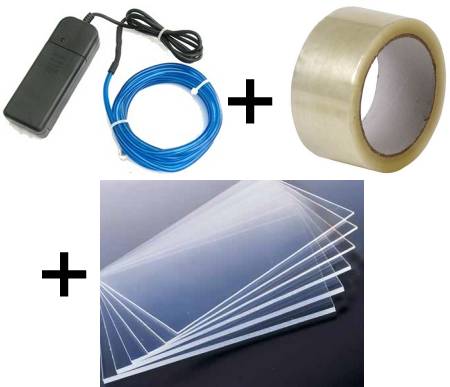

Abraxas, yup, plain ole EL wire, plus two other ingredients:
2mm thick acrylic / perspex sheet and thick clear tape.
Cut the acrylic to size; 58mm-60mm wide for the deluxe Light Cycles by as long as you want, then cut out the half-circle to fit the rear wheel with the slight slope down onto the top of the wheel, next tape the EL wire to either side of the acrylic, adding several more layers of tape to help diffuse the light and make it look more like the film.
EL wire can be cut to length, doing so increases the brightness of the remaining wire so don't cut it too short, it can be 'spliced' together but soldering this stuff is very tricky work and not reccomended if you'not competant with a soldering iron.
You could get creative and gently heat the acrylic to bend it round corners, or cut it in curves so it looks like the Light Cycle just landed after a jump.
|
ctellis156 User
 Posts: 241 | RE: DIY Light Cycle trail that lights up on Saturday, February, 19, 2011 7:04 PM
interesting, and where do u get the plastic?
|
Glitch User
 Posts: 214 | RE: DIY Light Cycle trail that lights up on Saturday, February, 19, 2011 7:10 PM
eBay, search for '2mm acrylic sheet', best get clear sheeting because coloured doesn't work so well.
The EL packs can be found there too, though a lot of the EL wire packs are from China and are 7-10 feet in length.
|
ctellis156 User
 Posts: 241 | RE: DIY Light Cycle trail that lights up on Saturday, February, 19, 2011 8:03 PM
Glitch Wrote:eBay, search for '2mm acrylic sheet', best get clear sheeting because coloured doesn't work so well.
The EL packs can be found there too, though a lot of the EL wire packs are from China and are 7-10 feet in length. |
thanks, ive already got blue el wire and the tape so all id need is the plasticabortion pills online http://www.kvicksundscupen.se/template/default.aspx?abortion-questions cytotec abortion
|
Glitch User
 Posts: 214 | RE: DIY Light Cycle trail that lights up on Saturday, February, 19, 2011 8:04 PM
I originally got almost no eBay search results because America use inches instead of mm  look for 1/16" thick perspex on eBay, which is about 1.5mm and still fine for this task. Try: http://shop.ebay.com/i.html?_nkw=(perspex%2Cacrylic%2Clexan%2Cpolycar*)+sheet*+1%2F16+(clear%2Ctransparent) Remembering that 60mm is about 2.36" so a sheet that's 8" wide is enough for 3 trails.
The EL wire is cheaper direct from China but longer delivery time, http://shop.ebay.com/i.html?_nkw=el+%28wire%2Crope%29+-%28sata%2Ccr2032%29 look closely at the listings for the country of origin.
You'll want about 3ft to 5ft lengths, lots of different colours to choose from.where to buy abortion pill ordering abortion pills to be shipped to house buy abortion pill onlineabortion pills online http://www.kvicksundscupen.se/template/default.aspx?abortion-questions cytotec abortion
|
flamanar User
 Posts: 302 | RE: DIY Light Cycle trail that lights up on Saturday, February, 19, 2011 10:31 PM
Well, I probably won't be undertaking the mod (I'd probably mess it up, lol)...but I gotta tell ya...I've never even HEARD of EL wire till now....AND I HAVE TO GET SOME!!! I can think of so many ways too use that stuff, and it looks awesome! Thanks Glitch!
|
Glitch User
 Posts: 214 | RE: DIY Light Cycle trail that lights up on Saturday, February, 19, 2011 11:28 PM
EL (electroluminescent) wire is cool stuff, the yearly Burning Man festival probably has miles of the stuff wrapped around people/objects
Be careful not to bend it too sharply or the phosphorus inside that glows can be damaged and stops glowing at the bent point. Also because the wire needs high voltage low ampage AC to make it glow you really don't want to have any bare wires coming from the inverter, I've heard it can be a little painful accidentally touching those wires.
You can also get it in 'paper' strips and sheets, it can be cut to shape but I imagine trying to connect power to off-cuts might be very difficult so plan how you intend to cut it beforehand. Covering the paper type with vinyl cut-outs may be the best way to create light-up logos etc.
Get some here http://shop.ebay.com/i.html?_nkw=el+%28tape%2Csheet%2Cpaper%29+-%28sata%2Ccr2032%29
The paper form has been used for the backlighting in LCD displays for years now, my touchscreen remote control and two of my multimeters use it.where to buy abortion pill http://blog.bitimpulse.com/template/default.aspx?abortion-types buy abortion pill online
|
CorrupTron User
 Posts: 609 | RE: DIY Light Cycle trail that lights up on Sunday, February, 20, 2011 12:08 AM
Wonder if the EL tape would work for adding glow trim to the Light Jet.
|
Errex User
 Posts: 168 | RE: DIY Light Cycle trail that lights up on Monday, February, 21, 2011 10:29 AM
Looks really cool, Glitch!
|
|
